POINT CLOUD DATA / SAVING TIME FOR FACTORY RENOVATION PLAN

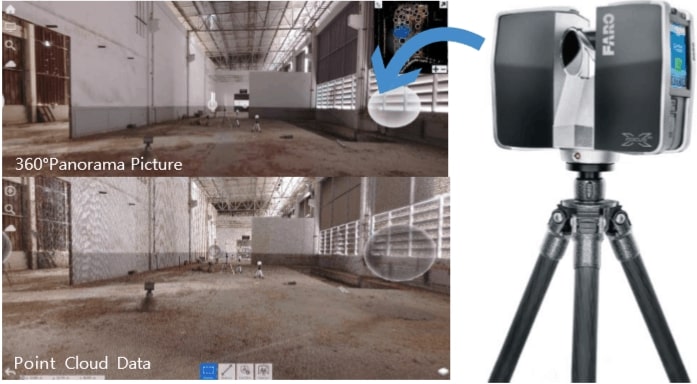

THAI TAKASAGO deploys 3D Scanner to shorten the duration of renovating your factory plan. Not so long until our valued clients can get the data of ducting, piping as well as each equipment’s Point Cloud Data. This Point Cloud Data is used to make a detailed layout and on top of this, it can be used as a machine installment plan for the future purposes.
SAMPLE POINT CLOUD DATA

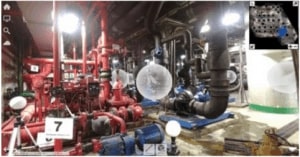

Walk Through
Anyone can open the Point Cloud Data with a free software, and it is easy to use. The Data can also be used for any types of business scenes such as manufacturing machine product’s maker, your suppliers’ company and the last but not least it could help your meeting with the parent company.

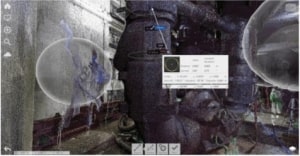

Precise Information
Point Cloud Data is usually considered as “±2mm” of the actual between the Data. Whenever you needed the detail of the area, now that you might not need to hire someone to do so. And now that by using REVIT, you can create CAD Data at any time.

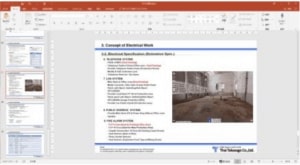

Create Document
Creating documents is much easier than ever. You can now Screenshot the area you like to use it for your documentation works, and it is easy to convert the types of the file into whatever you like.
3D MODELING SERVICE
REVIT 3D MODEL / CAD DATA

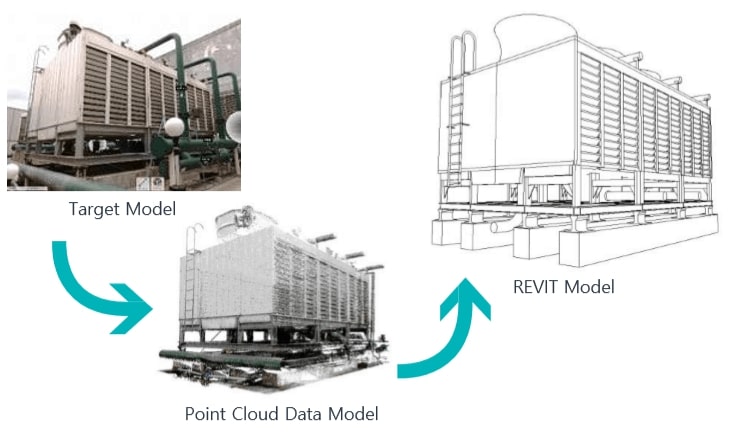

Point Cloud Data is the combination of a single dot, which it does not distinguish objects such as wall and piping. By using REVIT, it can visualize those objects come into realistic hence a one can see its material type, size, rotation, thickness and/or height. REVIT is also be able to use it for another business scenes and not limited to factory renovation purposes.
SAMPLE 3D MODEL
Create Layout
By creating 3D model, not only diagram floor layout plan, but also diagram cross- section layout plan and detailed view layout plan could be made at the same time. This as a matter of fact, our clients can reduce the time and cut the manpower for those making each layout plan.
Make Presentation Movie
3D Model can also be applied to creating Movie Clip. （Optional Service）A look of a buildings from outside, utility systems, and/or construction work progress…etc. This surely ease your work when explaining the Project to someone.
HVAC Simulation
3D Model can apply to HVAC Simulation (Optional Service）By contemplating the installment of equipment machines beforehand. Our clients can expect to cut the cost of Utility bills dramatically.
